Home DC EV Charger

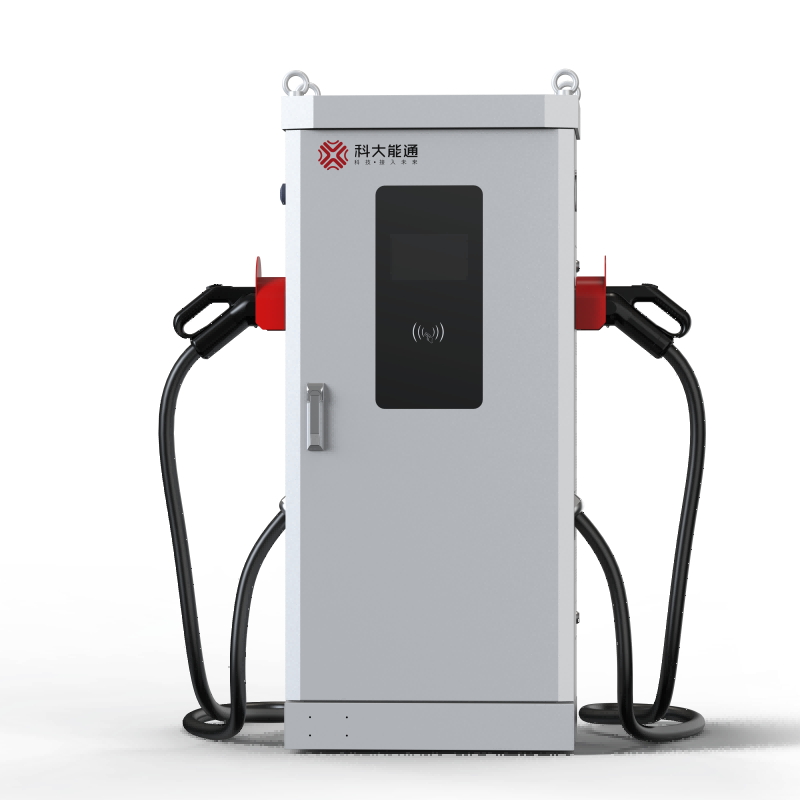

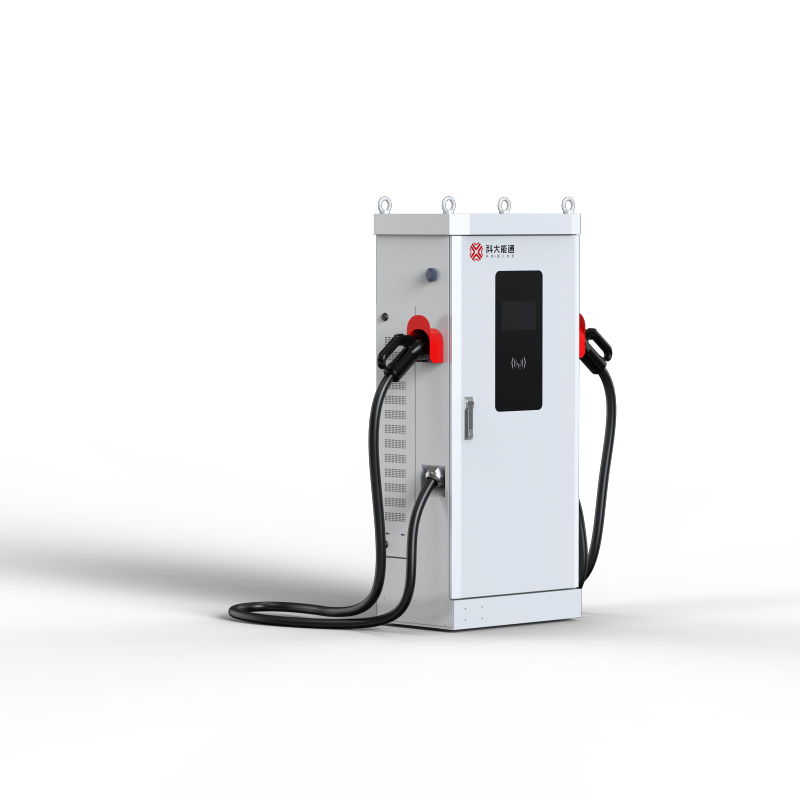

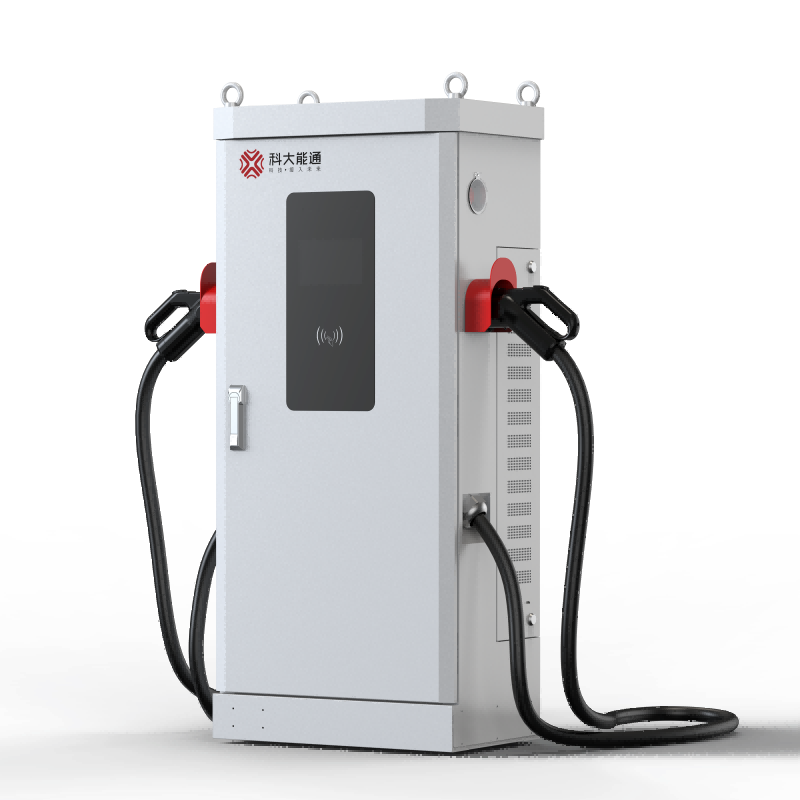

Integrated DC dual-gun fast charging pile

Integrated DC dual-gun fast charging pile

home dc fast charging
fast dc charging
dc fast charging station
public dc fast charging

This product can support multiple charging standards - GB/T CCS1 CCS2 CHAdeMO. It supports a small power range of 20~60kW and can be widely used in public operations, highway service areas and other scenarios, effectively shortening the charging time of various vehicles

  • Item No :

    USTEU-F04

  • Order(MOQ) :

    3

  • Product Origin :

    Hefei, China

  • Color :

    White

  • Lead Time :

    35 days

  • Power :

    60kW
Inquire Now

Product Description

Supports customized charging methods, and recommends 60kW~180kW for site construction



Product Features

  • With 0TA remote upgrade function
  • Adopts thickened metal shell with protection level up to IP55
  • With charging functions such as card swiping, NFC induction, plug and play, APP code scanning, remote reservation, etc.
  • Adopts advanced flexible intelligent control technology, which can be applied to adaptive charging of different models such as passenger cars, commercial vehicles, sanitation vehicles, etc.



Technical Parameters

F04DC charging pile Host size 1400×636×400mm
Installation Landing Power specifications 20kW/30kW/40kW/60kW
Input voltage 380VAC Input frequency 50/60HZ
Output voltage 1000VDC Protection level IP54
Charging port GB/T 20234.3 Operating temperature -30℃-50℃
Ambient humidity RH 5%-95% Altitude ≤2000M
Startup method Credit Card/Scan the QR code/VIN/License plate number/password Product Net Weight 40kW-159kg

F04DC charging pile Host size 1400×636×400mm
Installation Landing Power specifications 20kW/30kW/40kW/60kW
Input voltage 380VAC Input frequency 50/60HZ
Output voltage 1000VDC Protection level IP54
Charging port CCS2 Operating temperature -30℃-50℃
Ambient humidity RH 5%-95% Altitude ≤2000M
Startup method Credit Card/Screen Product Net Weight 60kW-170kg

F04DC charging pile Host size 1400×636×400mm
Installation Landing Power specifications 20kW/30kW/40kW/60kW
Input voltage 380VAC Input frequency 50/60HZ
Output voltage 1000VDC Protection level IP54
Charging port CHAdeMO Operating temperature -30℃-50℃
Ambient humidity RH 5%-95% Altitude ≤2000M
Startup method Credit Card/Screen
