USTEU AC electric vehicle has complete metering and billing functions. With its efficient and convenient features, it fully meets the diverse charging needs of public operation scenarios and provides reliable charging services for new energy vehicles.
Item No :
USTEU-W05Order(MOQ) :
20Product Origin :
Hefei, ChinaColor :
greyLead Time :
20-30 daysPower :
7kW
Product Description
This home new energy vehicle charging station is specially designed for commercial places such as underground parking lots, ground outdoor parking lots, etc. It provides safe and efficient charging guarantee for your car with excellent performance and thoughtful design.
Product Features
Technical Parameters
|
W05AC charging pile |
GB/T |
Host size |
405×220×118mm |
|
Installation |
Wall Mount/Column |
Power specifications |
3.5kW/7kW/11kW/21kW |
|
Rated input voltage |
220VAC/380VAC |
Input frequency |
50/60Hz |
|
Rated output voltage |
220VAC/380VAC |
Protection level |
IP55 |
|
Charging port |
GB/T 20234.2 |
Operating temperature |
-30℃-60℃ |
|
Ambient humidity |
RH 5%-95% |
Altitude |
≤4500M |
|
Startup method |
Plug and Play/Credit Card/fingerprint/Scan the QR code |
Product Net Weight |
3.85kg |
|
W05AC charging pile |
CCS2 |
Host size |
405×220×118mm |
|
Installation |
Wall Mount/Column |
Power specifications |
3.5kW/7kW/11kW/21kW |
|
Rated input voltage |
240VAC/400VAC |
Input frequency |
50/60Hz |
|
Rated output voltage |
240VAC/400VAC |
Protection level |
IP55 |
|
Charging port |
IEC 62196 Type2 |
Operating temperature |
-30℃-60℃ |
|
Ambient humidity |
RH 5%-95% |
Altitude |
≤4500M |
|
Startup method |
Plug and Play/Credit Card/fingerprint/Scan the QR code |
Product Net Weight |
3.85kg |
|
W05AC charging pile |
CCS1 |
Host size |
405×220×118mm |
|
Installation |
Wall Mount/Column |
Power specifications |
3.84kW/7.68kW//9.6kW 12kW/14.4kW/19.2kW |
|
Rated input voltage |
240VAC |
Input frequency |
50/60Hz |
|
Rated output voltage |
240VAC/400VAC |
Protection level |
IP55 |
|
Charging port |
IEC 62196 Type 1 |
Operating temperature |
-30℃-60℃ |
|
Ambient humidity |
RH 5%-95% |
Altitude |
≤4500M |
|
Startup method |
Plug and Play/Credit Card/fingerprint/Scan the QR code |
Product Net Weight |
3.85kg |

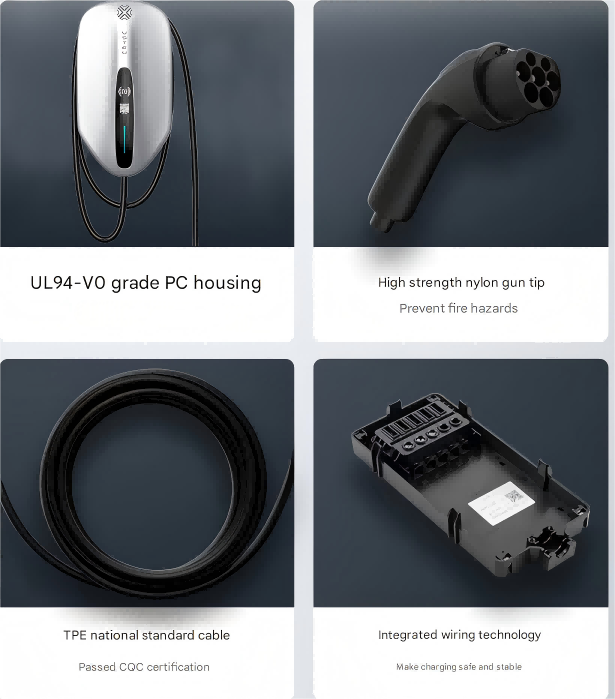

Material selection
This AC charging pile is specially designed for operational scenarios. With the concept of "technology connecting the future", it has efficient and stable charging performance, provides reliable and convenient charging services for new energy vehicles, and promotes green travel.
Details
USTEU AC electric vehicle has complete metering and billing functions. With its efficient and convenient features, it fully meets the diverse charging needs of public operation scenarios and provides reliable charging services for new energy vehicles.
Details
The on-board charger supports 16A and 10A specifications, with a power of up to 3.5kW, and is compatible with a variety of sockets to meet charging needs in different scenarios
DetailsFactory 1, Donggang Industrial Park, Huagang Town, Feixi County, Hefei City, Anhui Province
