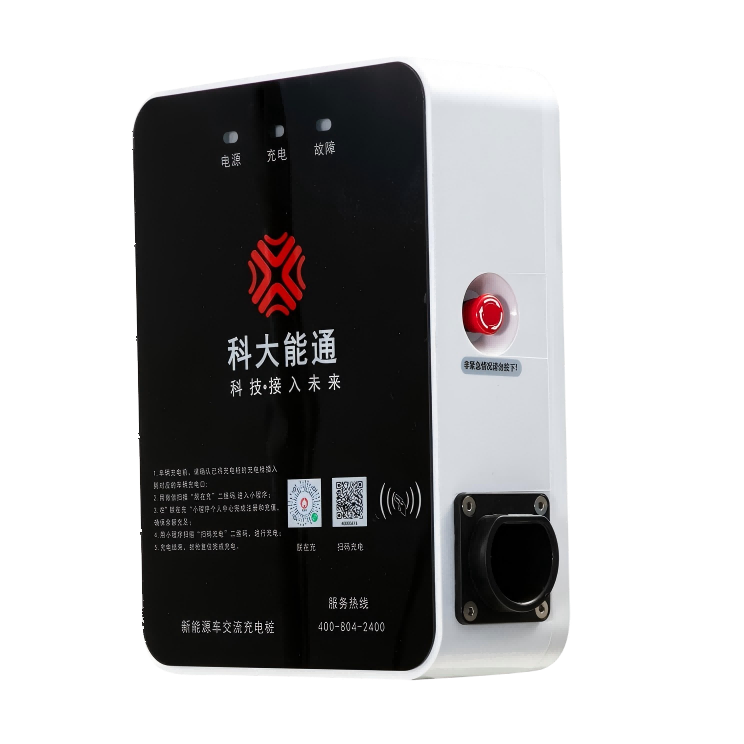

This AC charging pile is specially designed for operational scenarios. With the concept of "technology connecting the future", it has efficient and stable charging performance, provides reliable and convenient charging services for new energy vehicles, and promotes green travel.
Item No :
USTEU-W02Order(MOQ) :
10Product Origin :
Hefei, Anhui, ChinaColor :
WhiteLead Time :
25-30 daysPower :
7 kW
Product Description

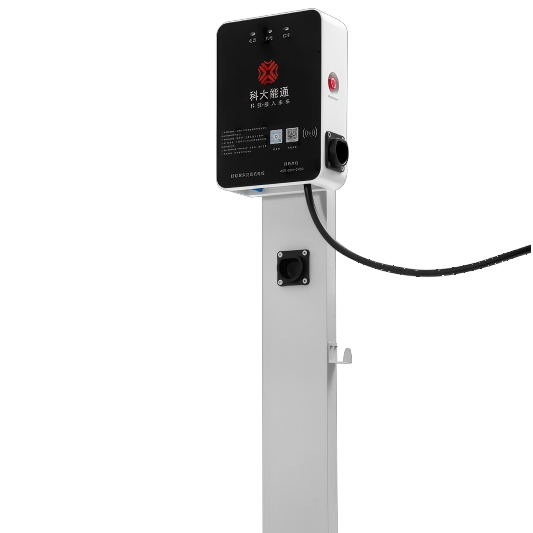

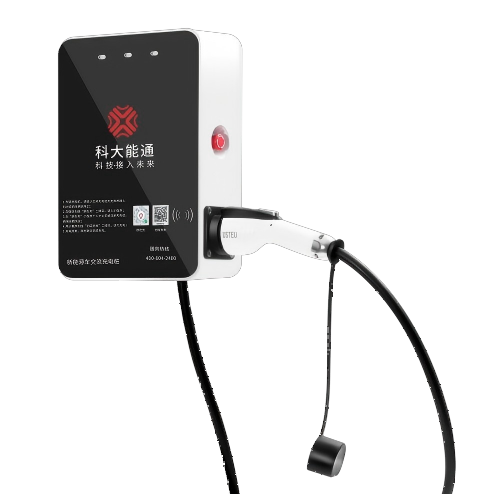

Choose wall mount or column mount according to the installation environment. IP55 protection level is not afraid of wind and rain and can be used outdoors safely
Product Features
1. Adopts closed design, protection level reaches IP55
2. Meets both wall-mounted and floor-standing installation modes, easy configuration, simple installation, comprehensive metering, billing, user management and other functions to meet public operation needs
3. Can access USTEU/local charging platform through 4G/WIFI
4. Scan code to charge, with protection functions such as overcurrent, overvoltage, short circuit, overtemperature, grounding, reverse zero and fire connection, lightning protection and relay adhesion
Technical Parameters
| W02 AC charging pile | GB/T | Host size | 350×238×105mm | |
| Installation | Wall mount/column | Power specifications | 3.5kW/7kW | |
| Input frequency | 50/60HZ | Input voltage | 220VAC/380VAC | |
| Protection level | IP55 | Output voltage | 220VAC/380VAC | |
| Operating temperature | -30℃-60℃ | Charging port | GB/t 20234.2 | |
| Altitude | ≤2000M | Ambient humidity | RH 5%-95% | |
| Startup method | Plug and Play/Swipe Card/Scan QR Code | Communication | 4G/Ethernet | |
| W02 AC charging pile | CCS2 | Host size | 350×238×105mm | |
| Installation | Wall mount/column | Power specifications | 3.5kW/7kW | |
| Input frequency | 50/60HZ | Input voltage | 230VAC/400VAC | |
| Protection level | IP55 | Output voltage | 230VAC/400VAC | |
| Operating temperature | -30℃-60℃ | Charging port | IEC 62196 Type 2 | |
| Altitude | ≤2000M | Ambient humidity | RH 5%-95% | |
| Startup method | Plug and Play/Swipe Card/Scan QR Code | Product Net Weight | 4.05kg | |
| W02 AC charging pile | CCS1 | Host size | 350×238×105mm | |
| Installation | Wall mount/column | Power specifications | 3.84kW/7.68kW//9.6kW12kW/14.4kW/19.2kW | |
| Input frequency | 50/60HZ | Input voltage | 240VAC | |
| Protection level | IP55 | Output voltage | 240VAC | |
| Operating temperature | -30℃-60℃ | Charging port |
IEC62196 Type 1 |
|
| Altitude | ≤2000M | Ambient humidity | RH 5%-95% | |
| Startup method | Plug and Play/Swipe Card/Scan QR Code | Product Net Weight | ||

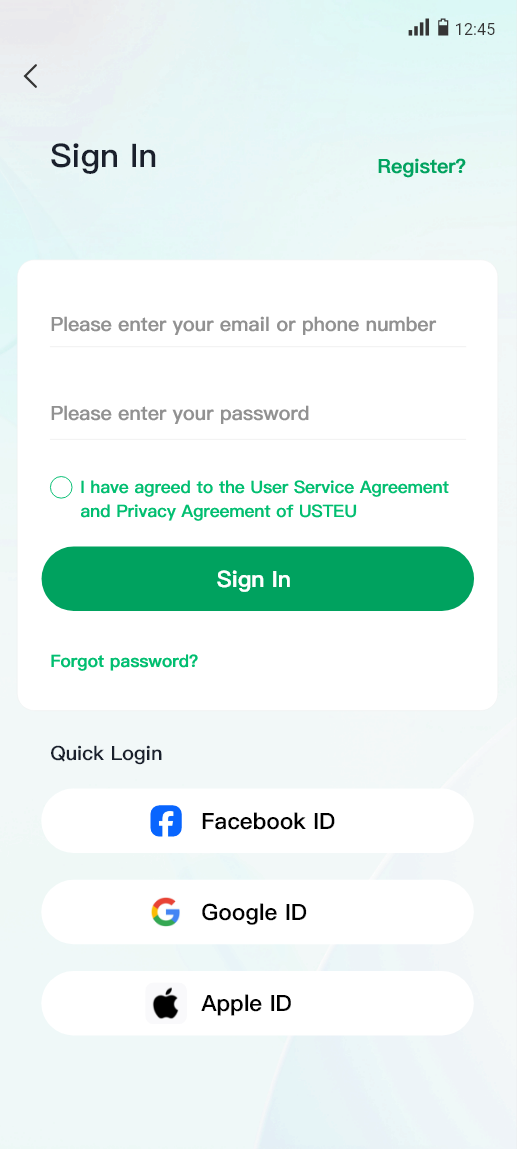

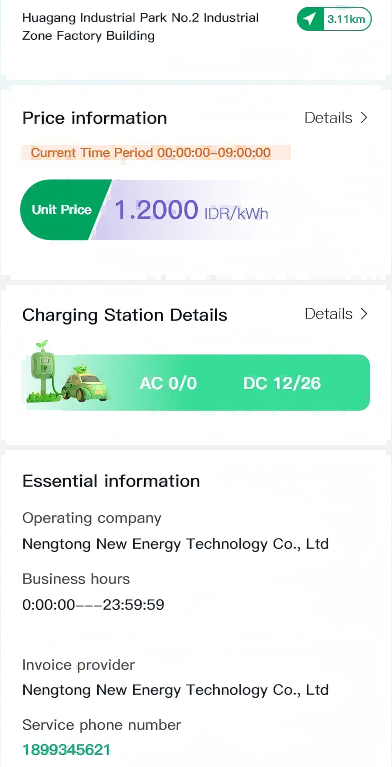

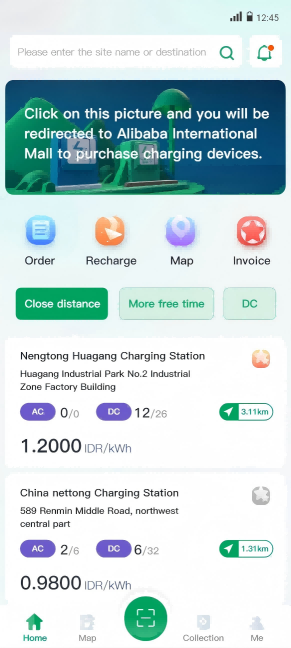

Smart Home charging with APP

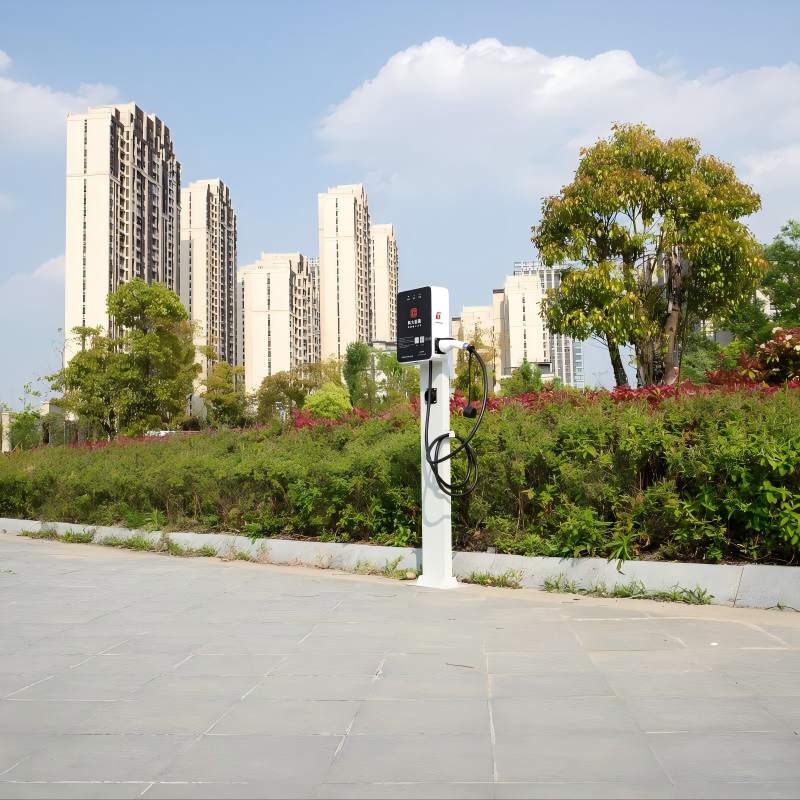

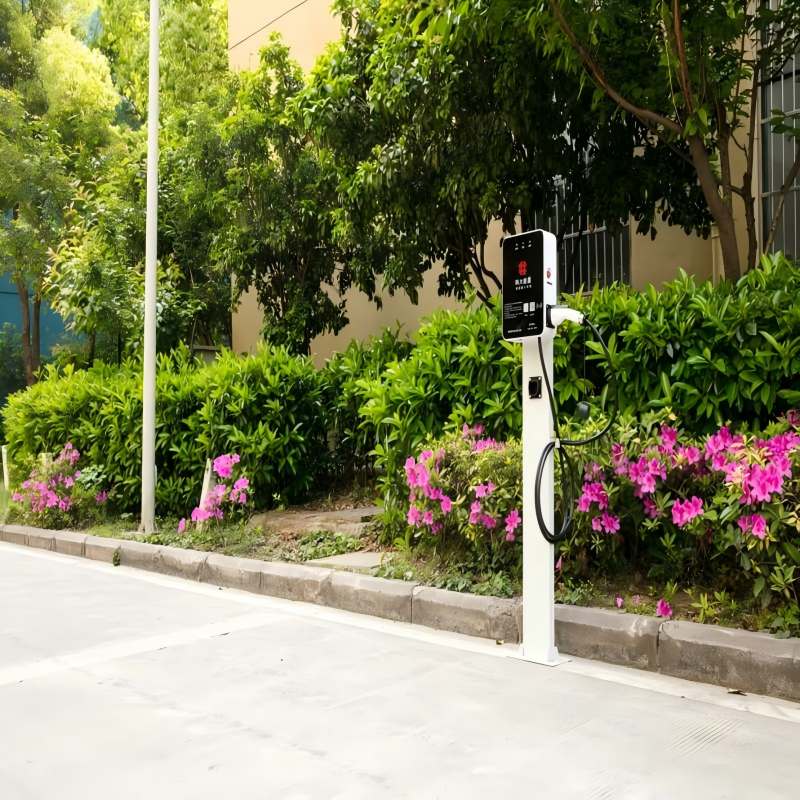

Installation Case
2- If you have any needs, please contact us to discuss details.
3- We will respond to your inquiry within 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above prices are for reference only, the final price is determined by the charger power, please contact us for an accurate quote.
This AC charging pile is specially designed for operational scenarios. With the concept of "technology connecting the future", it has efficient and stable charging performance, provides reliable and convenient charging services for new energy vehicles, and promotes green travel.
Details
USTEU AC electric vehicle has complete metering and billing functions. With its efficient and convenient features, it fully meets the diverse charging needs of public operation scenarios and provides reliable charging services for new energy vehicles.
Details
The on-board charger supports 16A and 10A specifications, with a power of up to 3.5kW, and is compatible with a variety of sockets to meet charging needs in different scenarios
