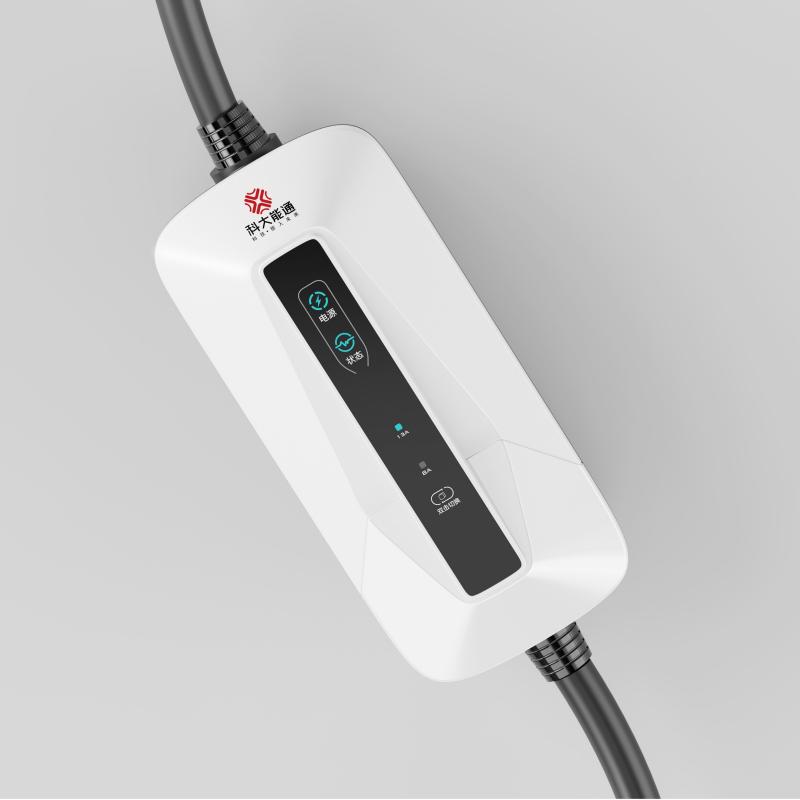

The on-board charger supports 16A and 10A specifications, with a power of up to 3.5kW, and is compatible with a variety of sockets to meet charging needs in different scenarios
Item No :
USTEU-M21Order(MOQ) :
50Product Origin :
Hefei, ChinaColor :
blackLead Time :
15 daysPower :
3.5kW
Product Description
Applicable in multiple scenarios, recharge at any time, convenient for home use and travel
Product Features
●Support vehicle-side scheduled charging
●Advanced injection-molded housing, exquisite and stylish appearance

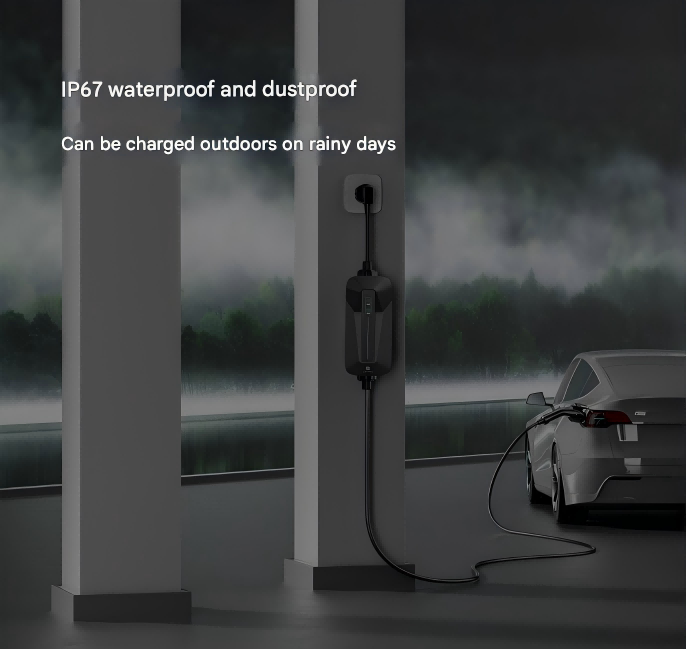

●Protection level reaches IP67, anti-UV process
●Gun line length can be customized: 5m/10m/15m/20m
●With over-current, over-voltage, short circuit, over-temperature, grounding, reverse zero-fire connection, lightning protection and relay adhesion protection functions
Technical Parameters
| M21Charging cable box | GB/T | Host size | 206×84×50mm |
| Installation | Portable | Rated current | 8A/10A/13A/16A |
| Rated output voltage | 220VAC | Input frequency | 50/60HZ |
| Rated input voltage | 220VAC | Protection level | IP67 |
| Charging port | GB/T 20234.2 | Operating temperature | -30℃-60℃ |
| Ambient humidity | RH 5%-95% | Altitude | ≤4500M |
| Startup method | Plug and Play | Product Net Weight | 1.65kg |
| M21Charging cable box | CCS2 | Host size | 206×84×50mm |
| Installation | Portable | Rated current | 8A/10A/16A |
| Rated output voltage | 240VAC | Input frequency | 50/60HZ |
| Rated input voltage | 240VAC | Protection level | IP67 |
| Charging port | IEC 62196 Type2 | Operating temperature | -30℃-60℃ |
| Ambient humidity | RH 5%-95% | Altitude | ≤4500M |
| Startup method | Plug and Play | Product Net Weight | 1.65kg |
| M21Charging cable box | CCS1 | Host size | 206×84×50mm |
| Installation | Portable | Rated current | 8A/10A/16A |
| Rated output voltage | 240VAC | Input frequency | 50/60HZ |
| Rated input voltage | 240VAC | Protection level | IP67 |
| Charging port | IEC62196 Type1 | Operating temperature | 30℃-60℃ |
| Ambient humidity | RH 5%-95% | Altitude | ≤4500M |
| Startup method | Plug and Play | Product Net Weight | 1.65kg |
3.5kW on-board charger with automotive-grade quality
1. The length of the gun line can be customized to meet various usage conditions · 5 meters · 10 meters · 15 meters · 20 meters
2. Intelligent dual temperature control The motherboard/gun head has a built-in temperature sensor and automatically stops charging when it exceeds 100°
This AC charging pile is specially designed for operational scenarios. With the concept of "technology connecting the future", it has efficient and stable charging performance, provides reliable and convenient charging services for new energy vehicles, and promotes green travel.
Details
USTEU AC electric vehicle has complete metering and billing functions. With its efficient and convenient features, it fully meets the diverse charging needs of public operation scenarios and provides reliable charging services for new energy vehicles.
Details
The on-board charger supports 16A and 10A specifications, with a power of up to 3.5kW, and is compatible with a variety of sockets to meet charging needs in different scenarios
